More on Euler Line



We stated in a previous class that the three centers of a triangle (circumcenter, centroid and orthocenter) falls on the same line (colinear) known as the Euler Line.

Let's now take a look at why this is true and what more we can learn about the Euler line.

In order to prove that these three centers (circumcenter O, centroid G, orthocenter) are colinear,  let's start by extending OG to meet the altitude AE at point H.
All we need to do is to prove that H is indeed the orthocenter.

Since  AE and OF are both perpendicular to BC, thus parallel to each other,  it goes that triangle AHG and GOF are similar.  It is well known that AG : GF = 2 : 1 because G is the centroid.  Thus we have
GH : GO =  AH : FO = 2 : 1

Let's connect C and H, and also draw the median CD going through G as below.

Since HG : GO = CG : GD = 2 : 1, we conclude that triangles CHG and GDO are similar, which implies that CH is parallel to OD. Thus CH is perpendicular to AB. This shows H is indeed the orthocenter.  We are done.

We further established that the distance between the centroid and orthocenter doubles that between the circumcenter and the centroid, with the centroid always lying between the other two centers.

March 29 - Homework

Homework for this week

Prove that the angular bisectors of the three angles of a triangle meets at one point, using Ceva's theorem.

Ceva's Theorem



Ceva's theorem states that for an arbitrary triangle ABC,  three lines drawn from each of the vertex of the triangle (AD, BE and CF ) meets at one point (the three lines are a.k.a. concurrent)   if and only if

Proof:   In order to relate these three ratios together,  we probably need to seek out (or create) some similar triangles.  Let's attempt this by drawing a parallel line through point A that is parallel to line BC.

Extend CF to cross this line at H,  extend BE to cross at G.

It is clear that triangles AGE and BCE are similar, so are AHF and BCF. Thus

Now we only need to figure out CD : DB.
Note that triangles AGK and BDK are similar, as are AHK and CDK.  Thus

Thus

Now this only proves that if AD, BE and CF are concurrent, the above equation holds.

We now go ahead to prove the 2nd half of Ceva's theorem, that if the above equation holds, then the three lines must be concurrent.  We use the approach of contradiction.  Assume that AD doesn't pass through the point of intersection K  between BE and CF,  as shown below.  Then we can always draw a line from A that passes through K and intersect line BC at point Q.

By the same logic as above, we can show that

Comparing this to the the known condition, we have


Add 1 to each side,

Thus Q and D must coincide, ie AD must pass through point K.  That proves the 2nd half of this theorem.

Centers of Triangles



There are a number of important centers for a triangle (any triangle).  These are:

The centroid - the point at which all three medians of a triangle meet.

The circumcenter: the point at which the perpedicular bisectors of the three sides meet.  This is the center of the "circumcircle",  the circle that passes through all three points of the triangle.

The incenter:  the point at which the three angular bisectors meet at one point,  which is the center of the "incircle", the circle that sits within the triangle, and tangent to all three sides of the triangle.

The orthocenter:  the point at which all three altitudes of the triangle meet.

These four centers (quartet) are the well known centers of a triangle, since the Greek times.  There is also an line known that connects three of these four centers, which includes the centroid, circumcenter and the orthocenter.  This line is known as the Euler Line.

March 29

We will move on to talk about other properties of the triangle. One of the more useful theorem concerns when three lines drawn from each of the vertex meet at one point.
This applies to the case of all kinds of centers for the triangle, the centroid, the incenter, the circumcenter, the orthocenter, so on and so forth.

Remember Damien demonstrated the proof of why the three medians of a traingle meet at one point, the centroid at the beginning of last class. We will study the commonality among all of these centers, and come up with a much easier way of proving that.
We'll attempt to prove the same for the other centers. And leave one for you to do as homework.

Law of Cosine

It's easy to see that ADBC is an isosceles trapezoid.  Apply Ptolemy's theorem

For any triangle ABC as depicted, with length of a, b and c  for sides across ∠A, ∠B, and ∠C respectively,  the law of Cosine states that



There are multiple ways to prove this important theorem about triangles.

Here we will use the Ptolemy theorem we have studied to prove it.

Let's start by constructing a mirror ΔDBC of the original triangle ΔABC.

It's easy to see that ADBC is an isosceles trapezoid.  Apply Ptolemy's theorem to the cyclic quadrilateral ADBC, we have:

Trigonometry - the Addition Formula of Sine

The addition and subtraction formula for sine:
Sin(A+B) = Sin(A)Cos(B)+Cos(A)Sin(B)
Sin(A-B) = Sin(A)Cos(B)-Cos(A)Sin(B)

Two different proofs of the addition formula is outlined below.

Proof 1:

Proof 2:

Construct a unit circle (ie, a circle with diameter = 1) with BC as it diameter, which also forms the diagonal of an inscribed quadrilateral ABDC, as shown below. Using the law of sine and definitions of sine and cosine, the addition formula for sine follows by a simple application of Ptolemy's theorem.

The subtraction formula is for your homework assignment.

A bit more on Claudius Ptolemy

Here are a bit more about Ptolemy's other achievements.

An Introduction to Ptolemy and Greek Astronomy

Wiki on Ptolemy

Have Fun!

Proof of Ptolemy's Theorem



A recap of the proof of Ptolemy's theorem I did in class today. This is a well known proof.   Simple and constructive in nature.

Given cyclic quadrilateral ABCD as shown. From point C, make line CE such that ∠ECD ≌ ∠BCA.

One can easily see that

ΔABC ∽ ΔDEC

which implies AB : DE = AC : DC ... (1)

Also because ΔCAD ∽ ΔCBE,
which implies BC : AC = BE : AD ... (2)

By (1) :   AB * DC = AC * DE

By (2) :  BC * AD = AC * BE     Adding these two equations gives

AB * DC + BC * AD = AC * DE + AC * BE = AC * (DE + BE) = AC * DB    Voila.

March 22 - Ptolemy's Theorem

Today, we'll study the Ptolemy's Theorem.

This is an important theorem about cyclic quardrilaterals discovered by
the famous ancient scholar.

March 15

We'll spend most of the class tomorrow going over the quiz, as I understand that was quite a challenge last Saturday.

I've put down some notes on Pi, as today (March 14) is the Pi day. Read it please, and come up with your own way of calculating Pi.

By accident, I changed the format of this blog, and had great trouble changing it back. So hopefully you don't find this new format annoying. Two comments as a result.

First, I am not a fan of changing format of web pages.
Second, Google is not such a big-deal company as everybody believes it is. It makes changes to its blogging tool at random. Of course, one can't really complain about a free service.

Solutions to Quiz - 3-8-08

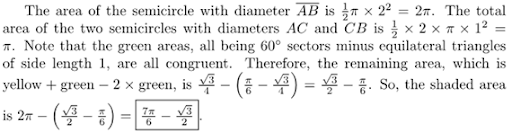

Problem 1

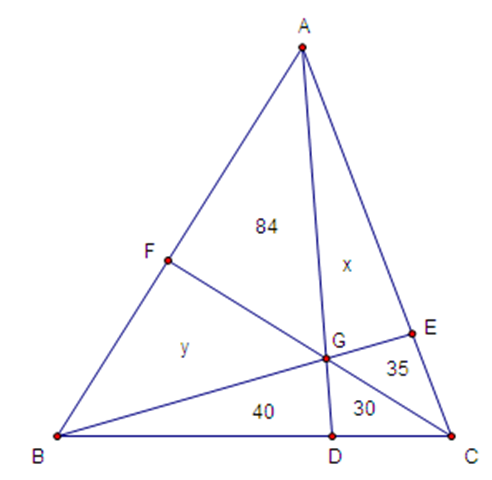

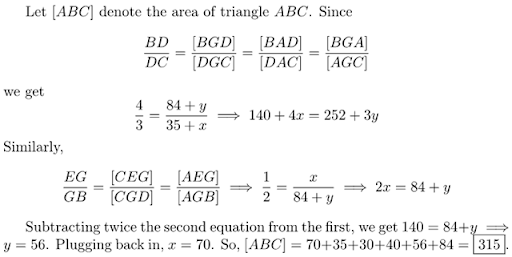

Problem 2.

Problem 3.

  A direct attack on this problem is by using the coordinate system.

Let's take BC as the x-axis, AB as the y-axis, point B as the origin. We just need to find the coordinate (x,y) of point O. This is rather straightforward.

x^2 + (y - 6)^2 = 50    ... (1)
y^2 + (x - 2)^2 = 50    ... (2)

Solving for (x, y) , we get the solution as:   (-5, 1) or (7, 1),  of which (-5,1) is the realistic solution.

Thus we have the solution for the length of BO  as  sqrt(26).

Problem 4.

Denote length of AB as |AB|, and let
|AB| =  x  and  |BC| = y.

It's easy to see from the top graph

( x - 21) : 21 = 21 :  ( y - 21)    ... (1)

From the 2nd graph

|AE| = sqrt(440) * x / y
|FC| =  sqrt(440) * y / x



|AC| = |AE|+|EF|+|FC| gives
sqrt( x^2 + y^2 ) = sqrt(440) ( 1 + x/y + y/x)                                 ...  (2)

I'll leave you to solve the set of equations (1) and (2) for x and y.

March 14 - Musing about Pi

Pi is likely the most remarkable number one has met as a young student. The number, which is the ratio of circumference of a circle to its diameter, has a long history rooted in eastern and western cultures. Pi is one of those numbers that cannot be evaluated exactly as a decimal. It is a number in a class of numbers known as irrational numbers.

Various approximate values of Pi has been given in history. Some of these values are given in fractions as:

22/7  =  3,142857143...(Archimedes, Greece,250 BC)

377/120  =  3,14166667... (Ptolemy, Egypt, 150 AD)

355/113  =  3,14159292... (Zu Chong-Zhi,China, 500 AD)

These were very good approximation of the actual value

pi = 3,1415926535...

calculated with modern techniques. The value given by the Chinese mathematician/astronomer Zu Chong-Zhi was accurate to the sixth digit after decimal point.

Please use your own technique to come up with an approximate value pi of your own, and we'll talk about what you come up with if we have time in class.

Happy Pi Day!

Quiz 1 - March 8, 2008

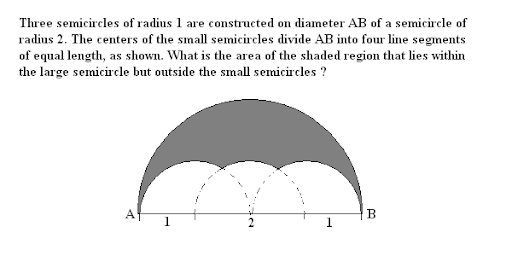

1. (AMC 10B , 2003)

2. (AIME 1994)

3. (AIME 1995)

4. (AIME ) - Extra Points

March 8 - Quiz Time

This Saturday, we will have a quiz on the geometry
subjects we covered so far this semester.

Since I will be out of town, the quiz will be
proctored by the substitute teacher (my wife). I will
be grading your paper and return them to you by the
following Saturday.

March 1st 2008

We will continue exposing the Law of Sine and some of its applications.
Along the way, we'll hit upon a few additional facts about triangles and their
circumscribing circles, directly derived from the Law of Sine, but interesting
enough to be called theorems themselves.

Our next target ist the Law of Cosine, another central theorem about triangles.
